Chemical Storage

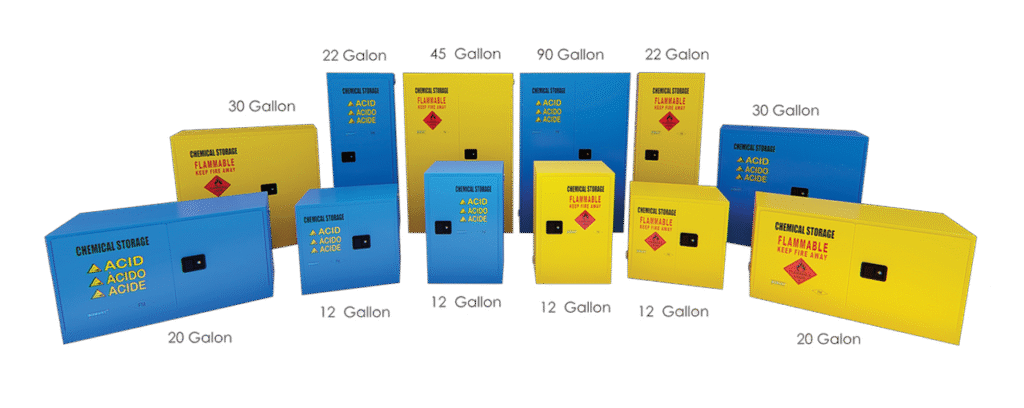

Chemical Storage Flammable and Corrosive
Type
- CSF/CSC12
- CSF / CSC 12 UB
- CSF / CSC 20 UB
- CSF I CSC 22
- CSF / CSC 30
- CSF / CSC 45
- CSF / CSC 90
Capacity (L)
- 45
- 45
- 75
- 83
- 114
- 170
- 340
Outer Dimension (mm)
- 590 x 460 x 890
- 700 x 500 x 500
- 1000 x 500 x 700
- 600 x 460 x 1650
- 1090 x 460 x 1120
- 1090 x 460 x 1650
- 1090 X 860 X 1650
Inner Dimension (mm)
- 510 x 360 x 790
- 620 x 400 x 600
- 920 x 400 x 600
- 520 x 360 x 1550
- 1010 x 360 x 1020
- 1010 x 360 x 1550
- 1010 x 760 x 1550
Shelve (Pcs)
- 1
- 1
- 1
- 3
- 2
- 3
- 3
Weight (kg)
- 60
- 70
- 85
- 90
- 100
- 138
- 190
Material
Wall Material
- Double Wall Build With 1.2 mm Electro-Galvanized Steel Finish Chemical Resistant Powder Coating
Door
- Single Door with Butterfly Hinge
Handle
- Paddle Handle Latch
Lock Mechanism
- 3-Point Self-Latching Lockable at The Handle
Shelves Material
- Galvanized Steel with Polypropylene/PVC Tray
Leak Containment
- Strong Anti Corrosion PP/PVC Tray for Dip/Leak Containment
- Ventilation complete with two 50 mm outlet
- Cabinets with built-in earthing
- Leveling screws at the base
Chemical Resistant Blower Material Polypropylene Include Ducting (For Chemical Storage Corrosive)
Filter Ductless for Chemicals Storage
Material
Electrical Load
- 220V/50Hz, 76 W, 3A
Smart Control System
- Eview 7 Inch Touch Screen to monitor the ambient humidity/ temp voe concendration and alarming system
Air Flow Velocity
- Filtering Rate 220 m3/h
Body
- Galvanized Steel 1.2 mm
- Finish Chemical Resistant Powder Coating
Noise
- Low Noise Level
Include
Filter Sensor
- Filter Saturation with Alarming System
Filter Model
- Strong HEPA Filtration as per ASTM Standard
- Integrated Usage For Acid, Organics and Dust Particle
Captair Ductless Chemicals Storage
Material
Dimension
- 1200 x 710 x 1910 mm
Load Capacity
- 160 Pcs 500ml Bottles
Electrical Load
- 220V/50Hz, 76 W, 3A
Smart Control System
- Eview 7 Inch Touch Screen to monitor ambient humidity / temp VOC concendration and alarming system
Air Flow Velocity
- Filtering Rate 220 m3/h
Cabinet
- Galvanized Steel 1.2 mm Finish
- Chemical Resistant Powder Coating
Door
- Acrylic Door with Safety Glass 6 mm
Noise
- Low Noise Level
Include :
Movable Shelves
- 8 Pcs
Filter Sensor
- Filter Saturation with Alarming System
Filter Model
- Strong HEPA Filtration as per ASTM Standard, Integrated Usage For Acid, Organics and Dust Particle
Leak Containment
- Strong Anti Corrosion PP/PVC Tray for Dip/Leak Containment
Chemicals Storage Polypropylene
Material
Dimension
- 900 x 450 x 1850 (H) mm
Main Structure
- High-Quality Polypropylene Board Thickness 8mm
Hinge and Handle
- High-Quality Molded Polypropylene Hinges and Handles
Shelves Material
- Strong Anti-Corrosion Polypropylene Shelves
Door
- 2 PP Doors with clear acrylic / 4 PP Doors (2 Door with clear acrylic and 2 Solid Door)
Weight
- ±65 Kg
Chemicals Storage Special Corrosive
Material
Dimension
- 1000 x 500 x 2000 mm
Main Structure
- Wooden Structure Solid Kamper Coated with Chemical Resistant Epoxy paint
Inside Wall
- Plywood with Melamine Sheet Laminated, Thickness 18 mm
Hinge & Handle
- Stainless Steel 304 Hinge and U Handle
Safety Glass Door
- Tempered Clear Glass Thickness 6 mm
Shelves
- Phenolic Resin Panel
Lighting
- 1 Unit Fluorescent Lamp Water Tight 1x20 watt Include Switch Button
Weight
- ±150 Kg
Chemical Resistant Blower, Material Polypropylene
Jas Lab Cabinet
Material
Dimension
- 1000 x 500 x 2000 (H) mm
Inner Wall
- Steel plate 1.2 mm finish by Heavy duty oven baked powder coating
Outer Wall
- Steel plate 1.2 mm finish by Heavy duty oven baked powder coating
Safety Glass Swing Door
- Laminated / tempered clear glass 6 mm
